Snow Shovel - Sketch Development
       
     
Snow Shovel - Sketch Development

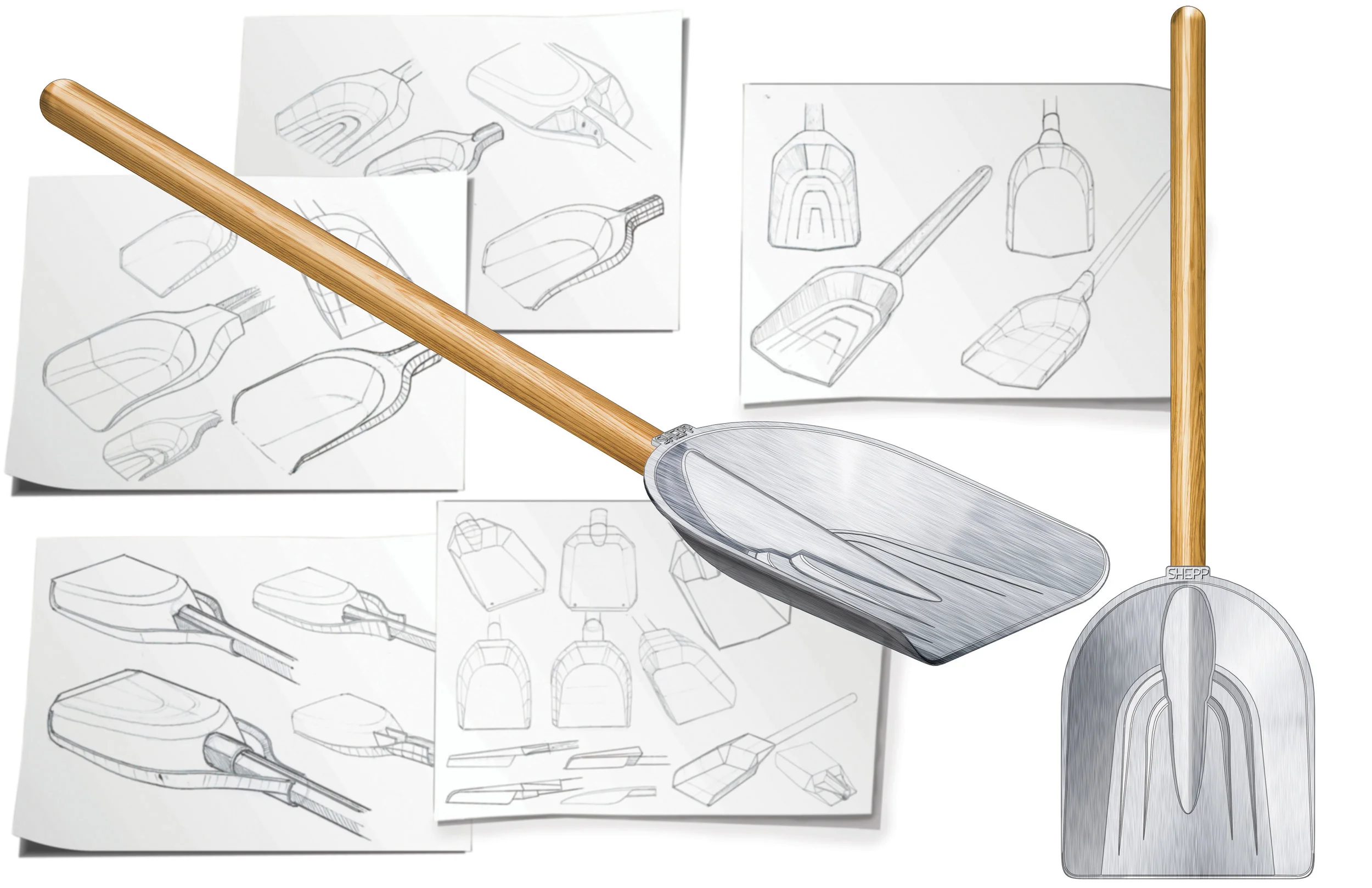

Sketch development and visualization process.

Snow Brush - Sketch Development
       
     
Snow Brush - Sketch Development

Sketch development and visualization process of the snow brush.

Ice Scraper - Sketch Development
       
     
Ice Scraper - Sketch Development

Sketch development and visualization process of the Ice Scraper.

Ice Scraper - Development
       
     
Ice Scraper - Development

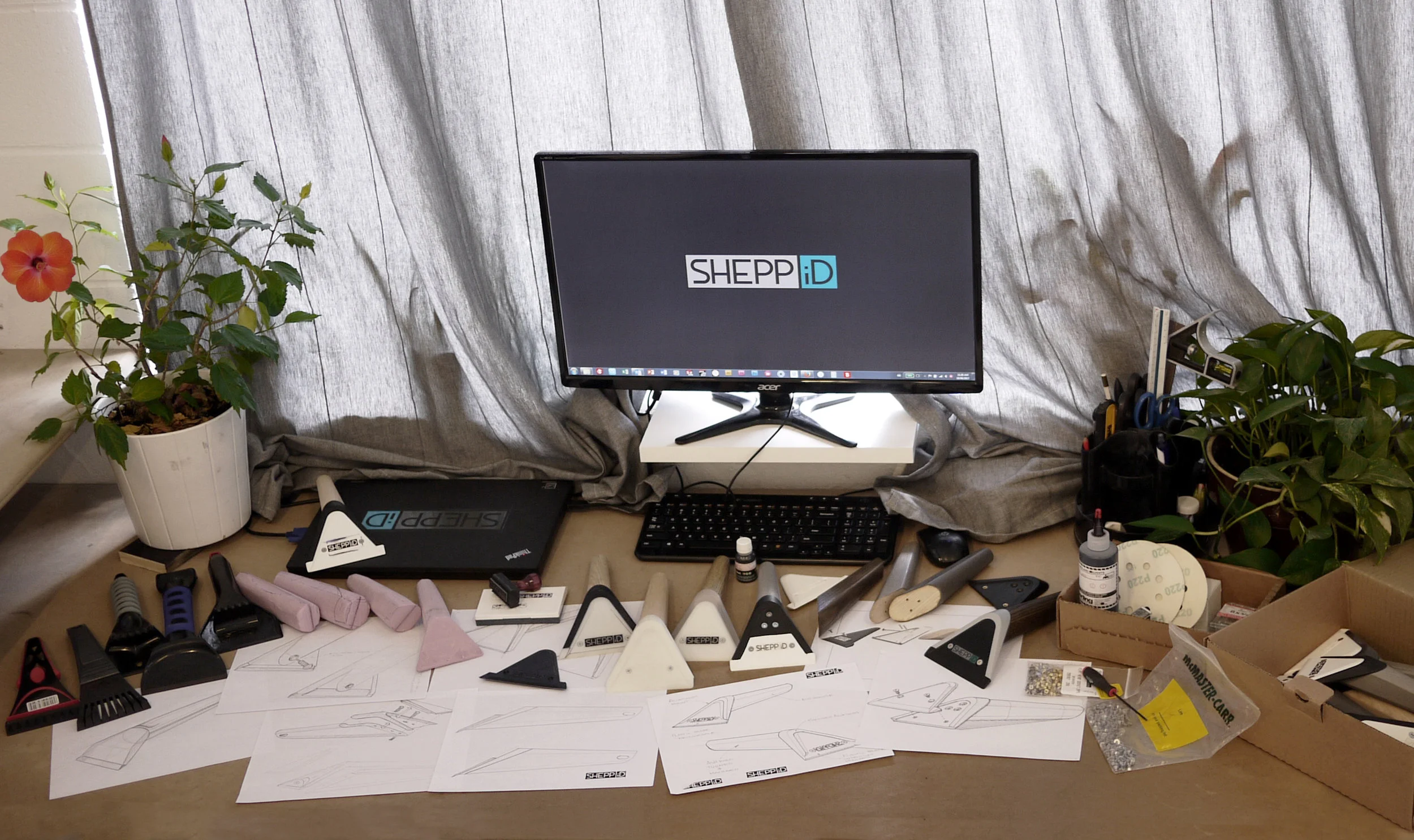

This is a collage of our process: Competitive landscape of products, conceptual sketch development, foam form studies, 3D printed prototypes, turned ash handles, machined tool holders, ink logo testing, fasteners, short run production, prototype cast polyurethane blades and holders. Lot's of fun happening here.

Ice Scraper - Development
       
     
Ice Scraper - Development

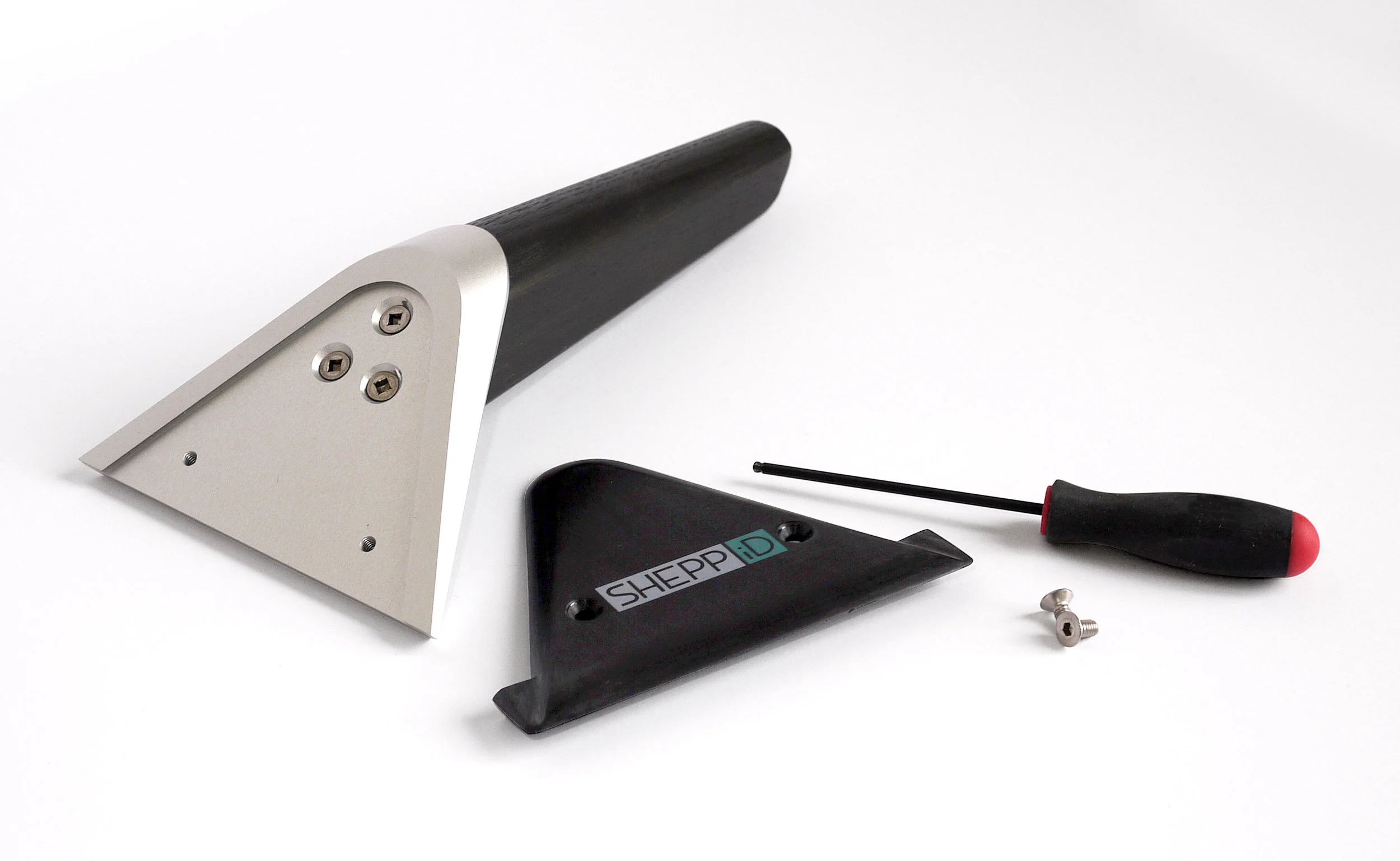

We are developing a Hi-Quality system that has a replaceable scraper blade. In most cases the blade is the part which will fail, so why not re-use the handle? Our main requirement when designing this product was to have a high quality handle and tool holder made of typical tool materials. The blade is designed to be easily interchangeable, or replaceable by the means of two hex head screws with a simple hex wrench.

Snow Shovel - Prototype Development
       
     
Snow Shovel - Prototype Development

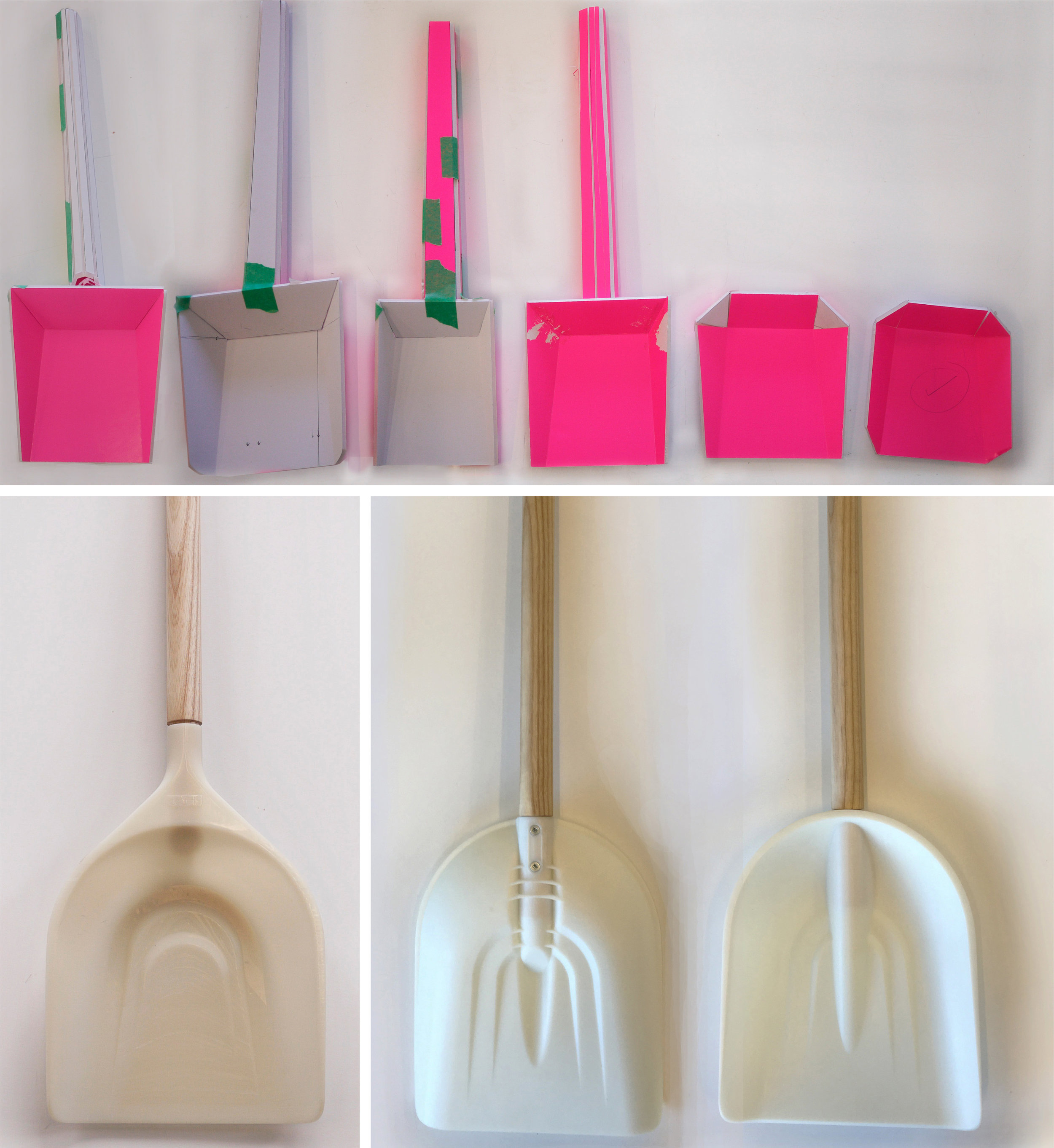

This shows our process from sketch models to realistic Epoxy based SLA 3D printed prototypes. Sketch models quickly help us determine basic sizes, shapes and volumes of the products we design.

Snow Shovel - Prototyping Testing
       
     
Snow Shovel - Prototyping Testing

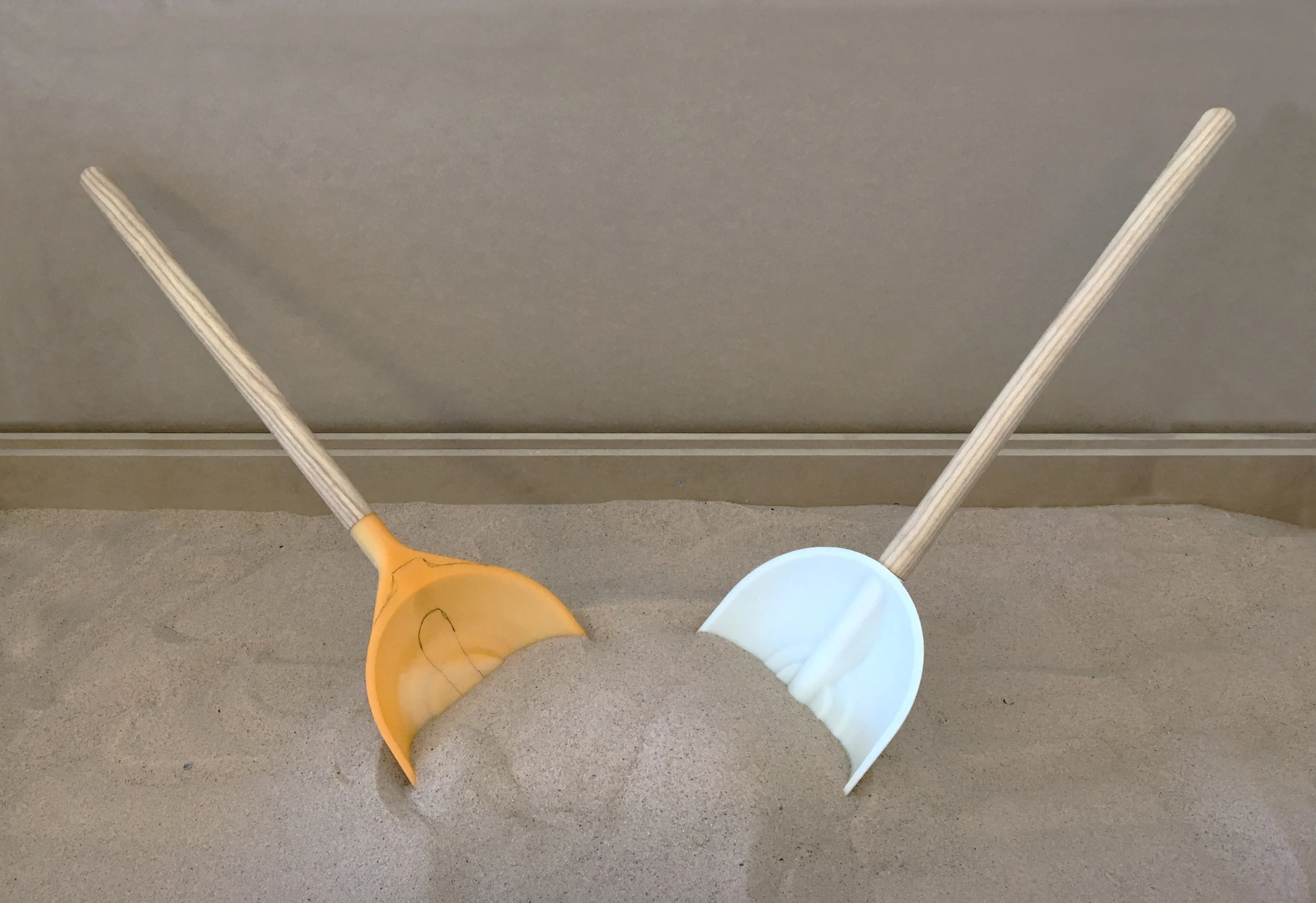

Here are 2 prototypes we 3D printed. They are being tested in a sandbox in our office. The sand helps us simulate snow.

Snow Brush - Development
       
     
Snow Brush - Development

Preliminary sketch models of brush handle and bristles.

Snow Brush - Development
       
     
Snow Brush - Development

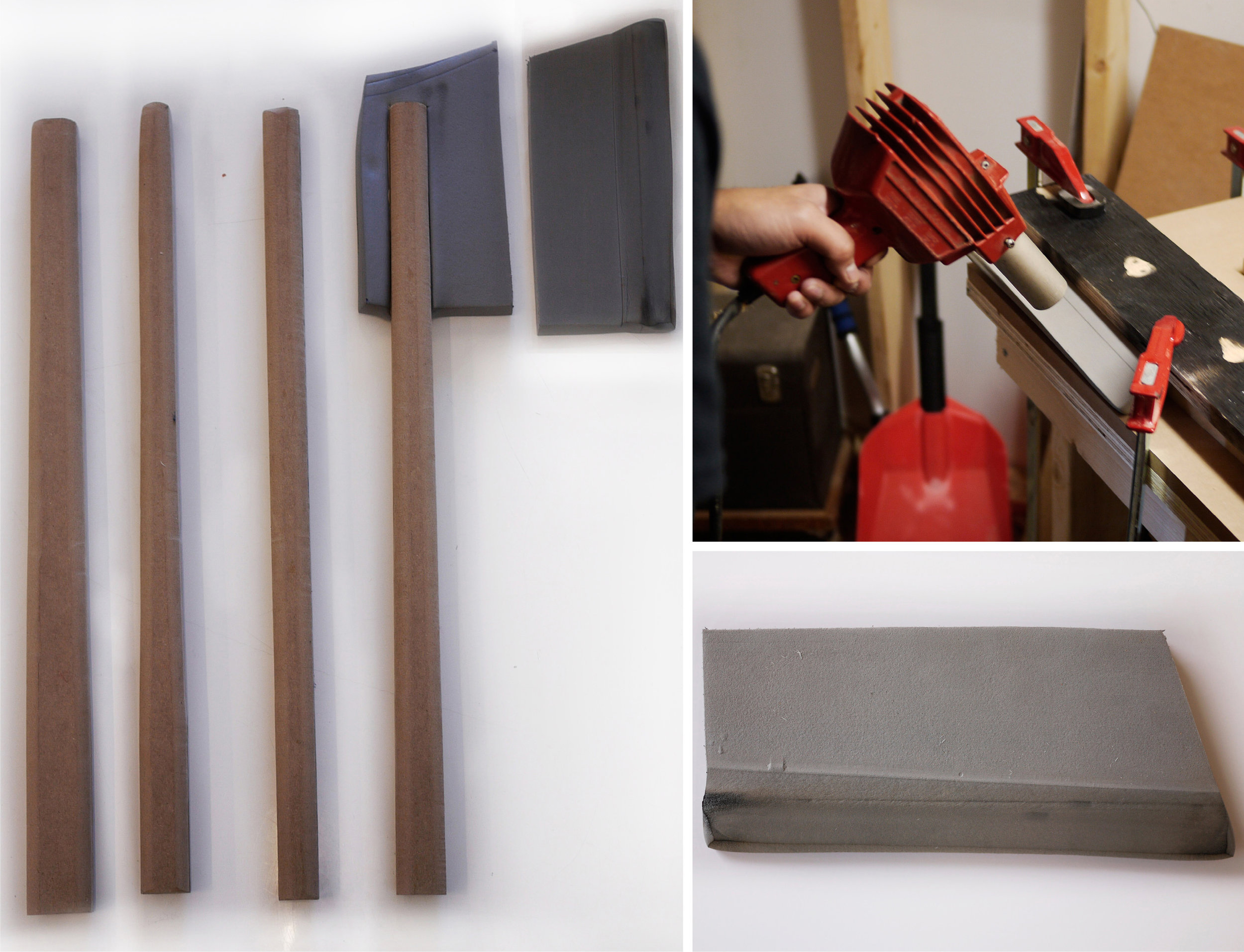

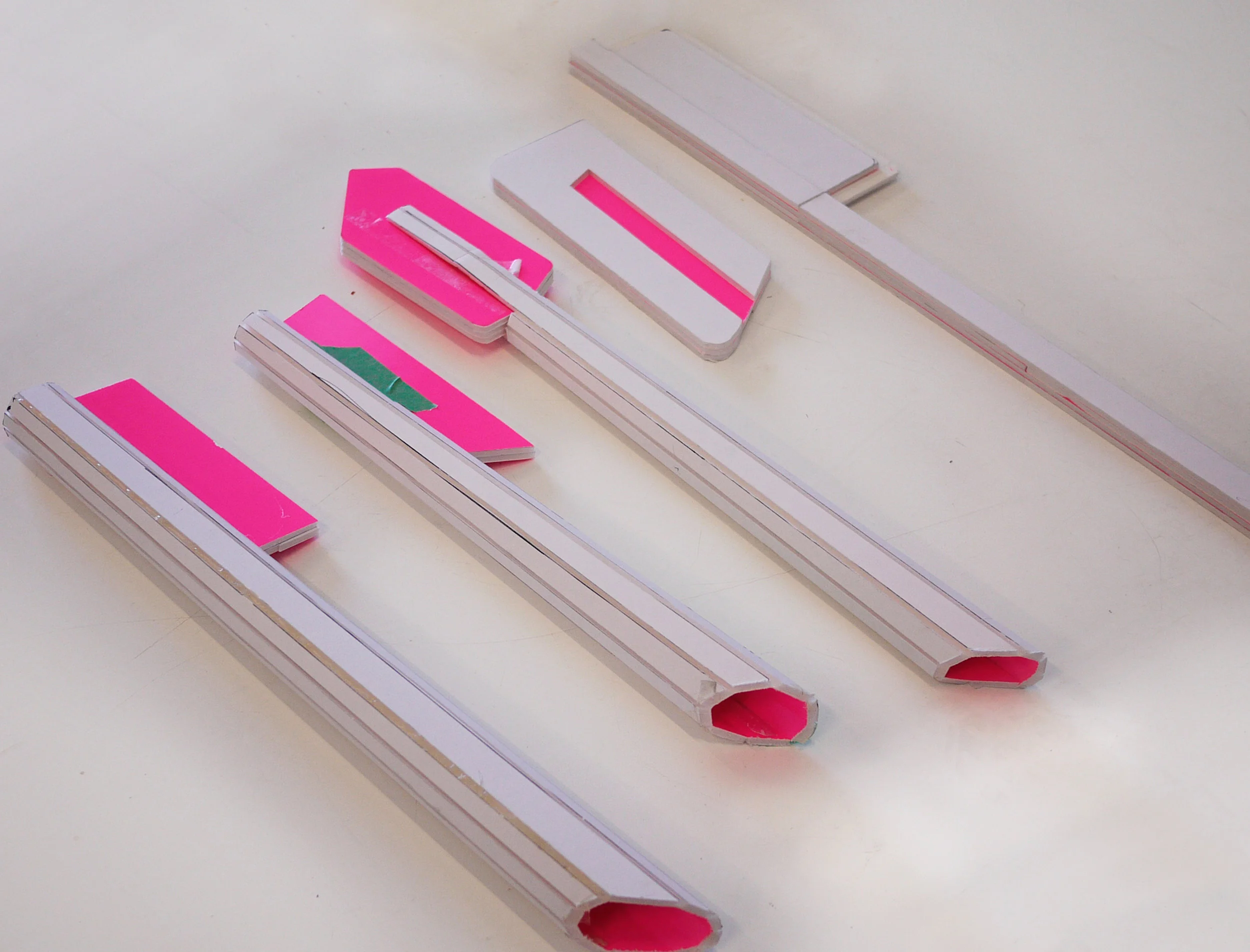

Quick mock-ups of the handle made in our shop. Also we test heat forming different closed cell foams.

Snow Brush - Development
       
     
Snow Brush - Development

Further refined quick mock-up prototypes testing sizes, forms and different types of foam. At this stage we can begin to test functionality with moving around sand in a sandbox, which we built in our office. Fun!

Snow Brush - Development
       
     
Snow Brush - Development

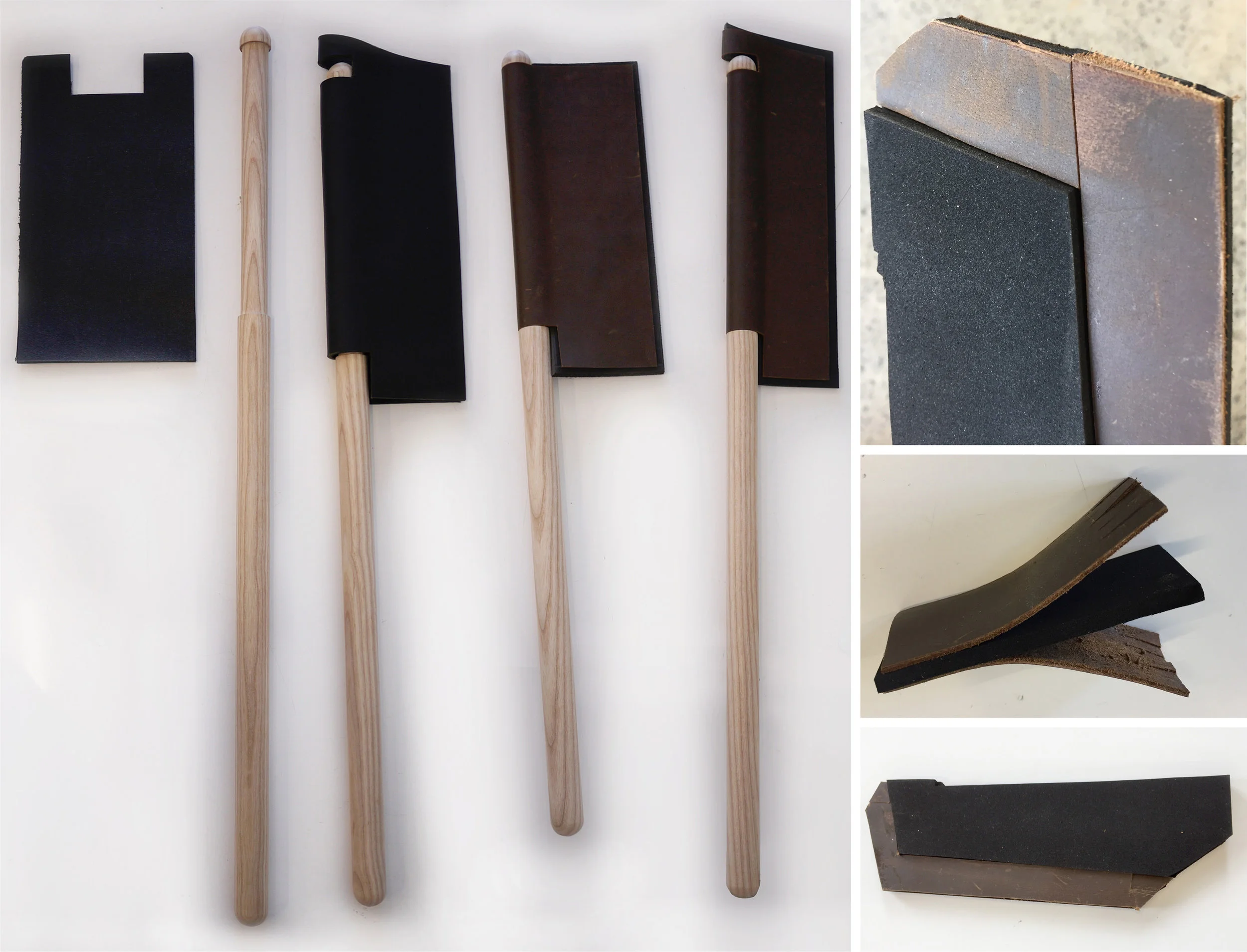

We thought leather might be a good material to use instead of plastic and foam. We tried many prototypes and combinations but didn't reach the quality level we anticipated, so we documented our failed results and moved on

Snow Brush - Prototypes
       
     
Snow Brush - Prototypes

Turned Ash handles, 3D Printed holder, CNC flash cut foam profiles.

Snow Brush - Prototypes
       
     
Snow Brush - Prototypes

Turned Ash handles, 3D Printed holder, CNC flash cut foam profiles.

Snow Brush - Development
       
     
Snow Brush - Development

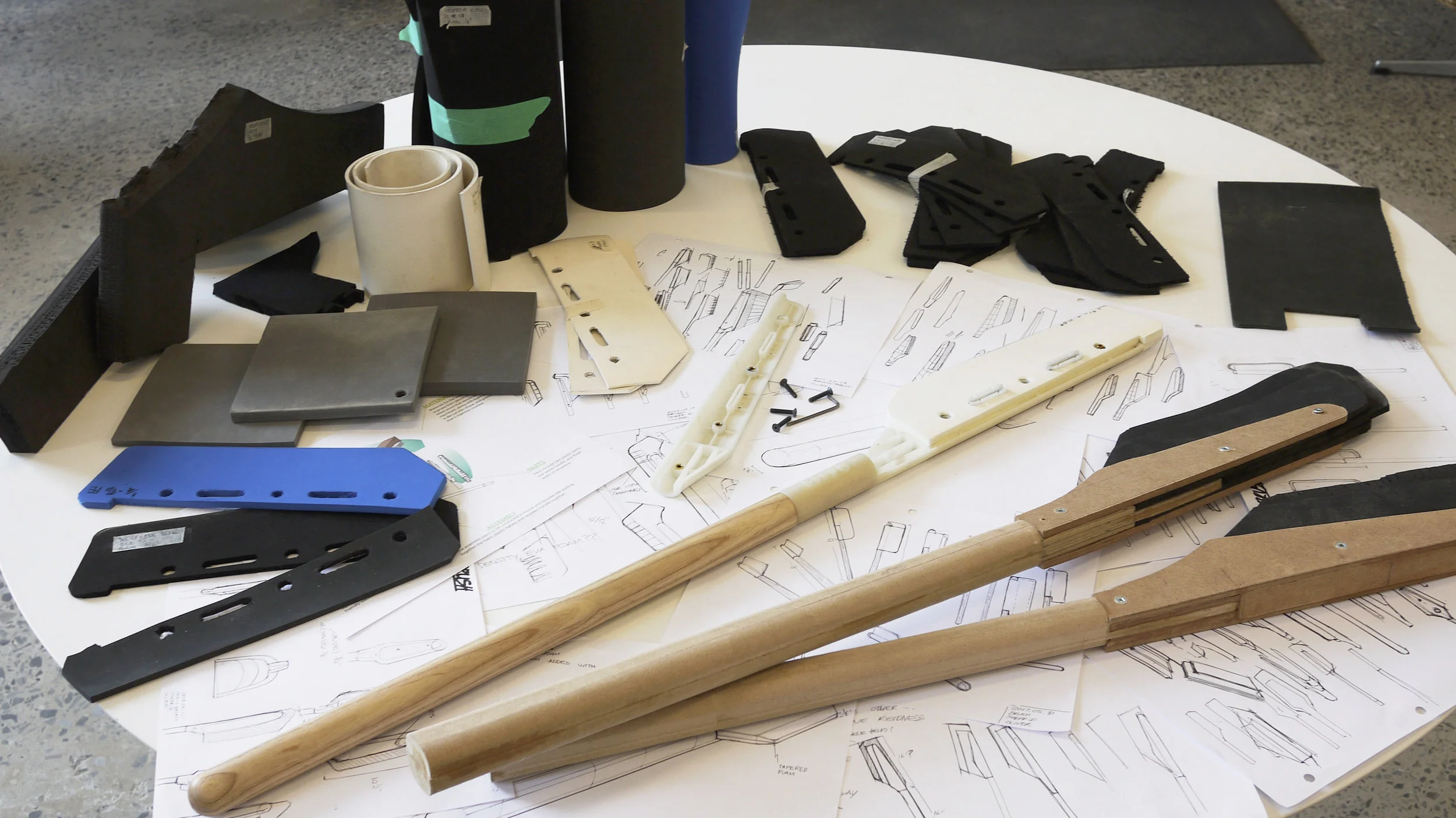

This is a nice snapshot collage of our development process. Sketches, materials, sketch models, prototypes, fasteners and a lot of learning and documenting.

Snow Brush - Prototype
       
     
Snow Brush - Prototype

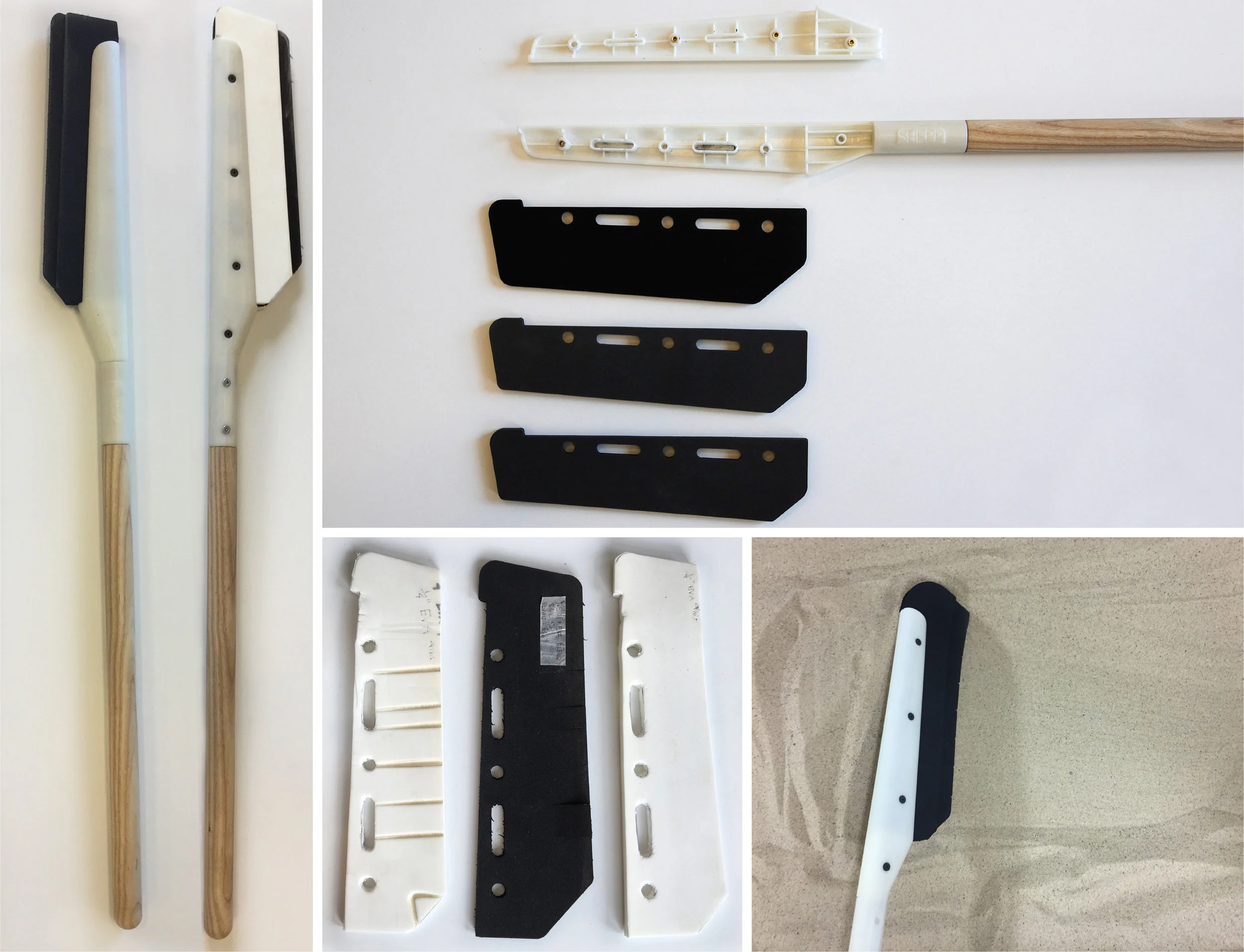

This is a breakdown of the current design. Ash handle, FDM 3D Printed holder, Brass threaded insers, Neoprene blend and EVA foam brush profiles, Flat head hex screws.

Snow Brush - Foam Prototyping
       
     
Snow Brush - Foam Prototyping

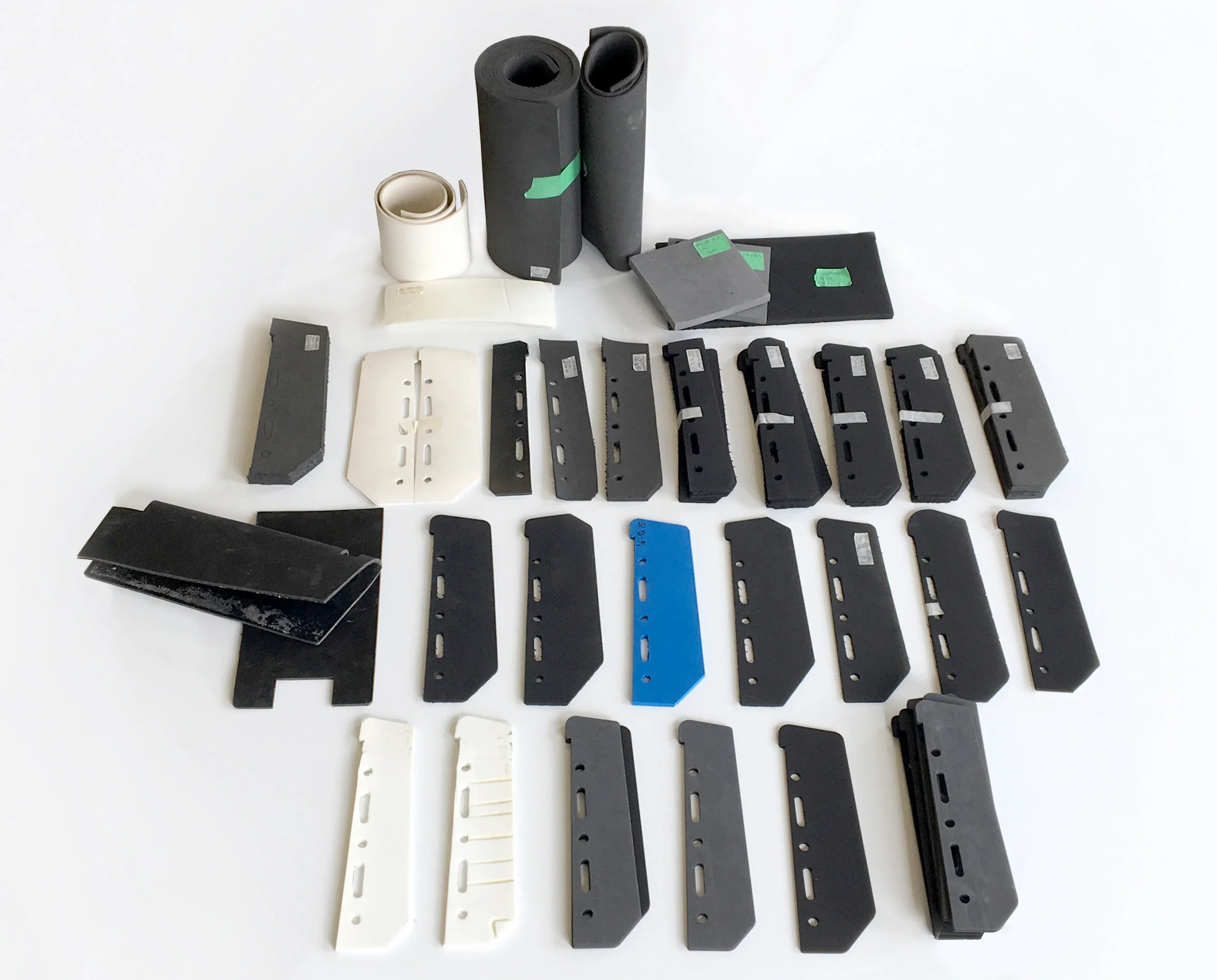

This is a collage of many different types of closed cell foams and profiles we tested.
